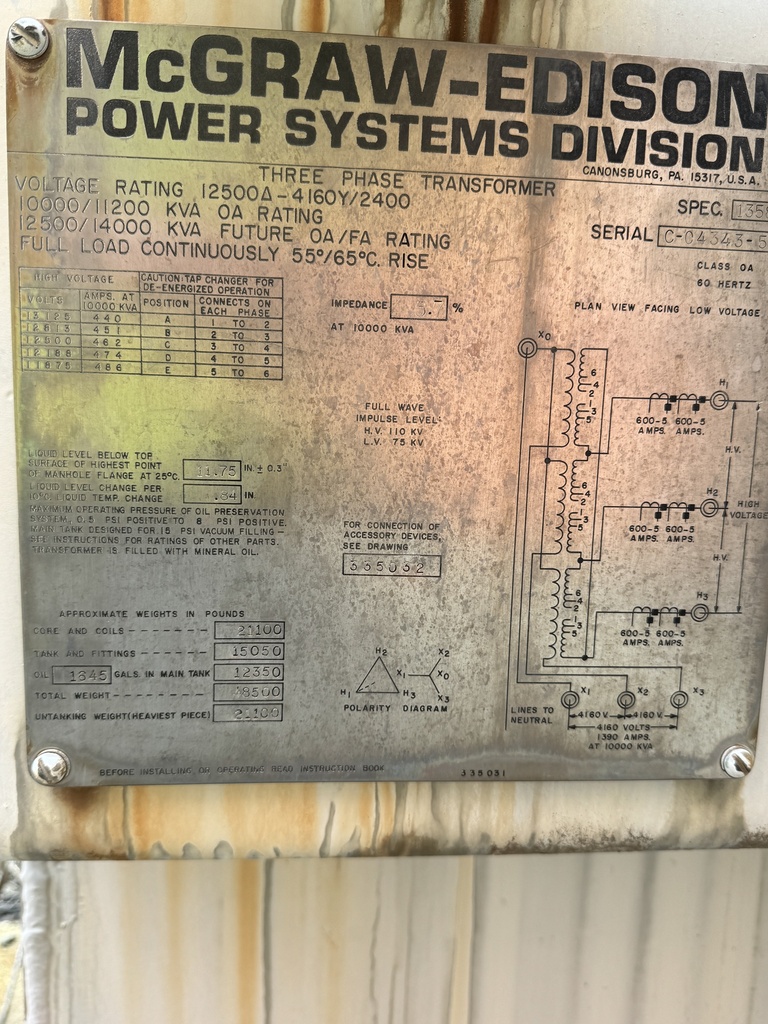

10/11.2/12.5/14 MVA McGraw-Edison, 12500D - 4160Y Oil filled Substation Transformer
Substation Transformer
Product Number:
045625
Full Product Description
KVA: 10000 KVA
Manufacturer: McGraw-Edison
Phase: Three
HERTZ: 60
CLASS: OA/FA
TEMPERATURE RISE: 55/65 °C
IMPEDANCE: 5.6 %
Primary - First: 12500 V
Primary - First Vector: Delta
Primary - First BIL: 110 kV
Secondary - First: 4160 V
Secondary - First Vector: Wye
Secondary - First BIL: 75 kV
HV BUSHING LOCATION: Top
LV BUSHING LOCATION: Side
LV Air Terminal Chamber: Partial
On load tap changer: Yes
HIGH VOLTAGE TAPS: 13125-12813-12500-12188-11875
CORE & COIL WEIGHT: 21100 lb
TANK & FITTINGS WEIGHT: 12520 lb
FLUID WEIGHT: 12350 lb
FLUID GALLONS: 1645 gal (US)
TOTAL WEIGHT: 48700 lb
FLUID TYPE: Mineral Oil
LIQUID LEVEL GAUGE: Yes
DRAIN & TEST VALVE: Yes
TEMPERATURE WINDING GAUGE: Yes
